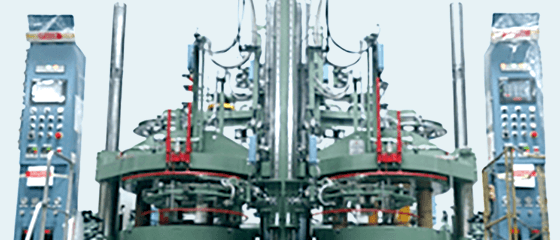

Rubber/Tire Industry, Standard Curing Press
Mitsubishi Heavy Industries Machinery Systems had produced mechanical press driven by electric motor in the past; however, recent models are mostly operated by oil hydraulic power.
Once green tire is set on the green tire holder located in front of the press, curing process from green tire loading into the tire mold, through curing and stripping of cured tire from the mold, to unloading of cured tire onto a takeaway conveyor behind the press is performed fully automatically.
Distributors :
Types of curing presses
Major types of oil hydraulic curing presses are the following 3 types.
Slide horizontally to see the table.
| Type | Construction |
|---|---|
| Column type | The tie-rods (columns) located around the mold holds the opening force of the mold caused by the internal pressure of the tire, and guide frame guides opening and closing of the mold. |
| Column guide type | Columns (tie-rods) guide the opening & closing motions of mold instead of guide frame of column type press as well as holding the opening force of the mold caused by the internal pressure of tire. Individual operation of different tires at left & right cavities is possible. |
| Frame type | The press frame of closed construction holds the opening force of the mold caused by internal pressure inside the tire, and guides opening & closing motions of mold. Individual operation of different tires at left & right cavities is possible. |
In addition to the major types said above, full lineup of various curing presses in the latest design are available by size and by application such as moving mold type curing press.

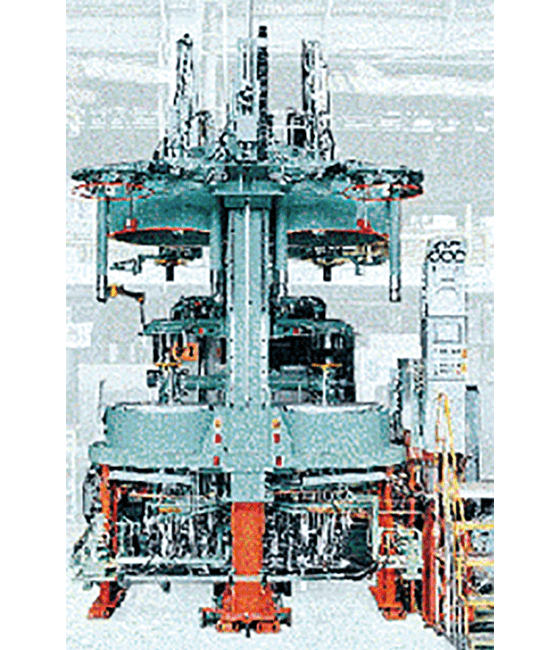

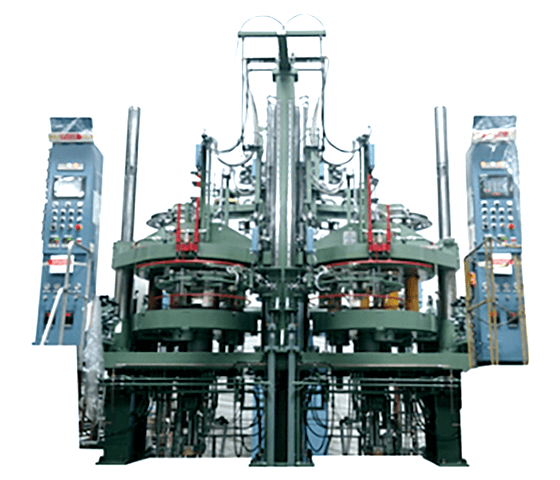

Column type tire curing press
Typical Specification
Slide horizontally to see the table.
| Model No. | No of mold |
Max. Sq. Force (ton) |
Tire dimension | Tire produced | Movement | ||||
|---|---|---|---|---|---|---|---|---|---|
| O. D. (mm) |
Width (mm) |
PC | LT | TB | OR | ||||
| PC-XL43R300 | 2 | 136 | 500 to 750 | 110 to 300 | × | Vertical | |||
| PC-XM47R330S | 1 | 150 | 550 to 750 | 200 to 330 | × | Vertical & horizontal | |||
| LT-XL51R385 | 2 | 175 | 550 to 900 | 150 to 350 | × | × | Vertical | ||
| LT-XL51R440 | 2 | 200 | 550 to 900 | 150 to 350 | × | × | Vertical | ||
| TB-XL57R550 | 2 | 250 | Max. 1,000 | Max. 410 | × | Vertical (Note 1) | |||
| TB-XL65R900 | 2 | 408 | 710 to 1,250 | 180 to 400 | × | Vertical (Note 1) | |||
- 1Individual operation at left & right cavities is possible.
- 2PC: Passenger Car tire, LT: Light Truck tire, TB: Truck & Bus tire, OR: Off-Road tire.

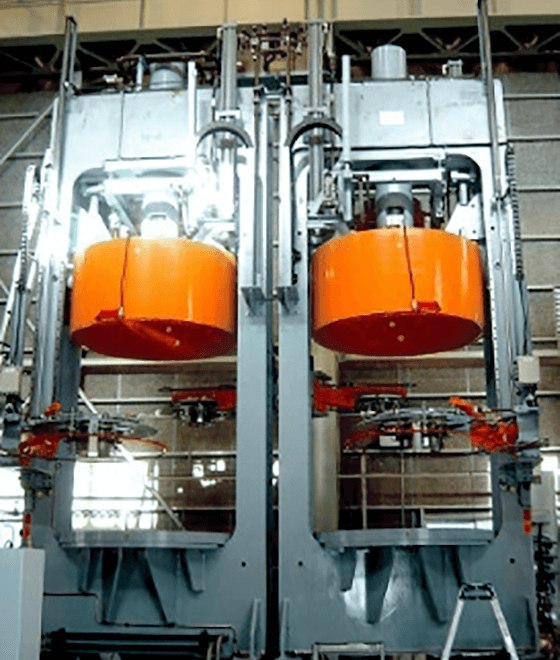

Column guide type tire curing press
Typical Specification
Slide horizontally to see the table.
| Model No. | No of mold |
Max. Sq. Force (ton) |
Tire dimension | Tire produced | Movement | ||||
|---|---|---|---|---|---|---|---|---|---|
| O. D. (mm) |
Width (mm) |
PC | LT | TB | OR | ||||
| MGW-48 | 2 | 200 | 500 to 810 | 180 to 520 | × | × | Vertical (Note 1) | ||
| MGW-52 | 2 | 200 | 550 to 900 | 180 to 520 | × | × | Vertical (Note 1) | ||
| OTR-117R2430 | 1 | 1,100 | 1,220 to 1,900 | 310 to 760 | × | Vertical & horizontal | |||
| OTR-130R3700 | 1 | 1,680 | Max. 2,900 | Max. 1,000 | × | Vertical & horizontal | |||
- 1Individual operation at left & right cavities is possible.
- 2PC: Passenger Car tire, LT: Light Truck tire, TB: Truck & Bus tire, OR: Off-Road tire.

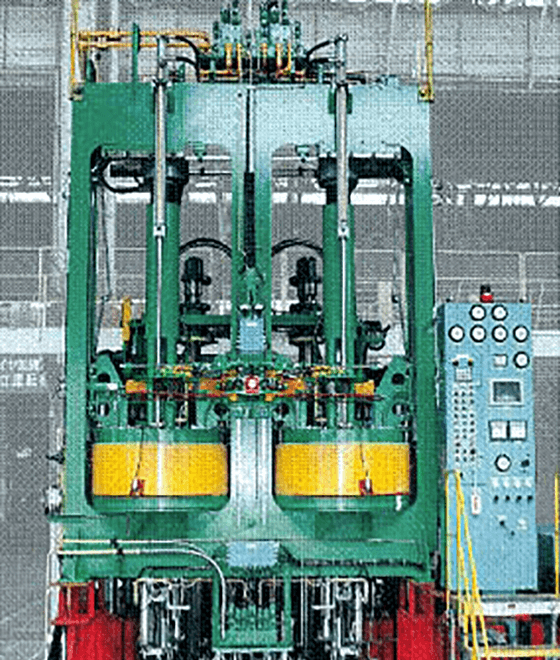

Frame type tire curing press
Typical Specification
Slide horizontally to see the table.
| Model No. | No of mold |
Max. Sq. Force (ton) |
Tire dimension | Tire produced | Movement | ||||
|---|---|---|---|---|---|---|---|---|---|
| O. D. (mm) |
Width (mm) |
PC | LT | TB | OR | ||||
| LT-XR45 | 2 | 138 | 550 to 825 | 150 to 300 | × | × | Vertical (Note 1) | ||
| LT-XR51 | 2 | 175 | 550 to 900 | 150 to 350 | × | × | Vertical (Note 1) | ||
| TB-XD60R900 | 2 | 408 | Max. 1,250 | Max. 450 | × | Vertical (Note 1), (Note 2) | |||
| TB-X65R1000 | 2 | 450 | Max. 1,370 | Max. 500 | × | Vertical (Note 1) | |||
- 1Individual operation at left & right cavities is possible.
- 2Dome type.
- 3PC: Passenger Car tire, LT: Light Truck tire, TB: Truck & Bus tire, OR: Off-Road tire.
Other tire curing press/system
Slide horizontally to see the table.
| Tire curing press/system | Feature |
|---|---|
| Moving mold type curing press | The upper or lower mold moves horizontally and receives a green tire at loading cycle. It has an advantage of reduced height of the curing press. |
| Electrically driven curing press | Major press movements, opening/closing and horizontal moving back/forward of lower mold are driven by electric servo motor through ball screw mechanism. For this reason, high machine accuracy is achieved resulting in production of high quality tire. In addition, the press achieves shorter cycle time, and its height can be reduced as low as possible. |

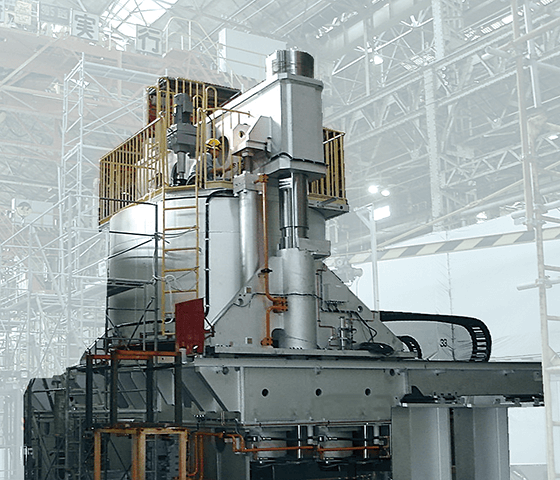

| Earth-mover tire curing system | Super giant tire utilized at mining site, sized 4 meters or bigger, is vulcanized with this curing system, which is a kind of container device for segmental mold. Outer ring of the container device is moved up and down synchronously by oil hydraulic cylinders located around and below the outer ring. |
| Curing system with self-locking curing unit | Mold opening force due to internal pressure inside tire is held by curing unit itself, and therefore press construction members do not need to hold such force. For this reason, the rigidity of the machine can be reduced to the minimum. In addition, automatic changing system of tire mold and center mechanism is applied. |
