Solar Simulation System
[ Testing Equipment ]

Solar radiation equipment for simulating solar radiation angles and sunlight spectrum in addition to heat capacity and illumination intensity.
Simulates calories, intensities of illumination, solar angles, and full spectrums.


Slide horizontally to see the table.

Target Area 2×4m
Intensity Range 300-1,200W/m2
Solar Spectrum Full simulation
Drive system operating range Angle of elevation 25 to 90°
Angle of direction ±180°

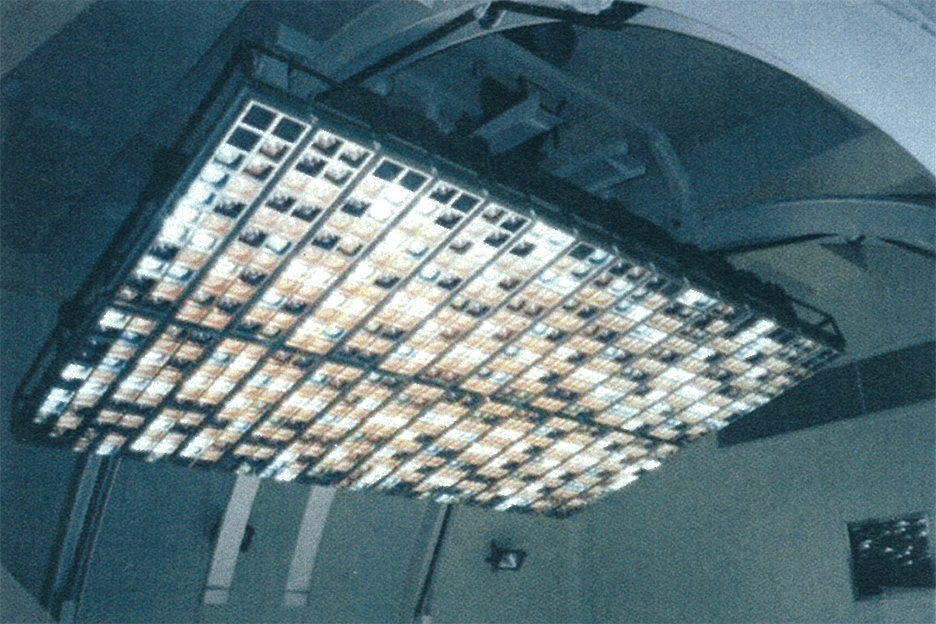

Photograph of the Solar Radiation Equipment
