Construction of CFD-MBD Co-simulation Technology to Improve Product Reliability of Box Making Machines

ATSUSHI NAKAGAWA
ROHIT ARORA
TOMOSHIGE TAKATA
HIROYUKI KANAZAWA
TOMOHIRO AKAKI

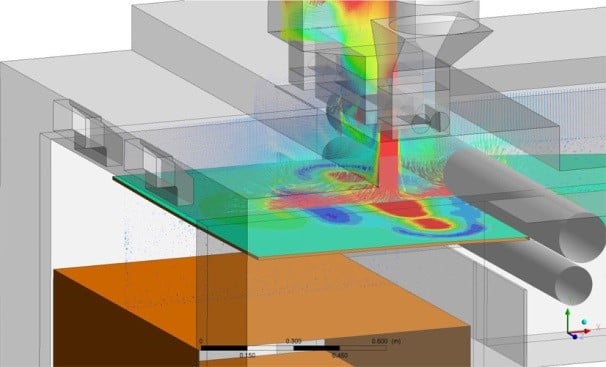

In order to accurately predict and analyze the behavior of cardboard sheets during high-speed operation of the cardboard box making machine products of Mitsubishi Heavy Industries, Ltd. (MHI) Group, we reproduced the flow field in a cardboard box making machine with CFD (Computational Fluid Dynamics) and modeled the elastic deformation and movement of cardboard sheets with MBD (Multi Body Dynamics) to construct a CFD-MBD co-simulation model. As a result, the prediction of the flying behavior of cardboard sheets inside the cardboard box making machine has been made possible without making a prototype, and the optimum control for stabilizing the cardboard sheet behavior can be considered. This report presents this effort.
