Structure-Mechanism-Control Coupled Large-Scale Analysis for Streamlining of Full-Scale Structural Test

SHUNJI MORICHIKA
HIROYUKI KANAZAWA
TETSUHEI KOBAYASHI
EI ONOGAWA
NATSUKI MATSUNO
HIROAKI YASUMOTO

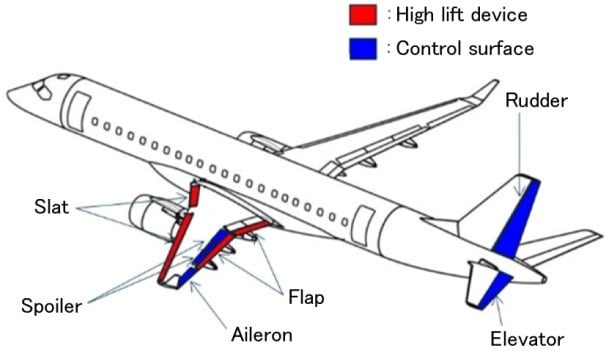

Aircraft, which are subject to various loads during operation, must fly safely with controllability and redundancy ensured, even under the harshest expected conditions. On the other hand, it takes a significant amount of time and risk to verify by flight tests whether the control surfaces can be operated normally in the presence of a gust and whether the aircraft can continue to fly safely even if a failure occurs during flight. Mitsubishi Heavy Industries, Ltd. (MHI) developed large-scale ground test equipment that can simulate the above conditions and narrowed down the test conditions using the large-scale analysis technology introduced in this report. As a result, we were able to obtain the prospect of completing verification testing in a short period of time. By applying this structure-mechanism-control coupled large-scale analysis technology, it is possible to efficiently evaluate airframe performance in similar developments and to streamline the verification test and accelerate the development process.
