High place working robot (SUPER-Giraffe)
High place working robot (SUPER-Giraffe)
SHARE
This robot was developed for accident work at the Fukushima Daiichi Nuclear Power Station
Distributors :

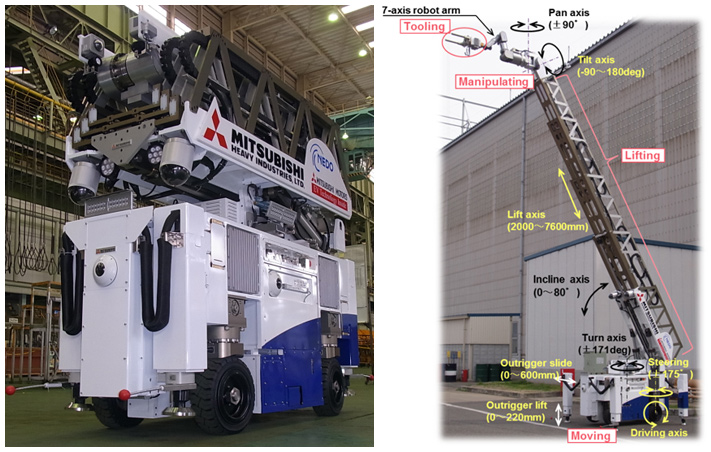

Appearance of high place working robot
Promotion Movie
| Item | Specifications |
|---|---|
| Dimensions(travel mode) | Length:2,350 mm(100”) Width:800 mm(31.5”) Height:2,000mm(78.7”) |
| Weight | 4 tons (8818 lbs.) |
| Travel system | 4-wheel drive, 4-wheel steering |
| Speed | Max. 6 km/h (3.75 mph) |
| Load lifting type | 5-step telescopic ladders capacity of 150 kg (330 lbs.) |
| Robot arm | One 7-axis arm with handling capacity of 20 kg (44.1 lbs.) |
| Accessible height | Up to 8 m (26.3’) from ground level |
| Attachment tool | Valve opening/closing mechanism (combination of handle rotator and opening/closing counterforce support) |
| Power source | Lithium-ion rechargeable battery (adopting technologies featured in MMC’s EVs) |
| Operating time | 5 hours |
| Operating method | Wireless remote control (using Ethernet) |
Display system of robot’s surroundings for operator
This robot was developed for the Unmanned Disaster Response System Research and Development Project NEDO (New Energy and Industrial Technology Development Organization)
