Theater and Stage Machinery System:Kiryu City Performing Arts Center SILK HALL

Distributors :

Acoustic Shell and Stage unified in one

A cultural artistic center citizens love, with a special exterior design all of its own. The movable acoustic shell is installed in the Silk Hall (grand hall).The acoustic shell and stage move up and down together as one in a unique and special fashion.

Completion date
Feb, 1997
Number of seats
SILK HALL: 1,527 seats

Specification

Slide horizontally to see the table.

Movable Acoustic Shelter Electric One set

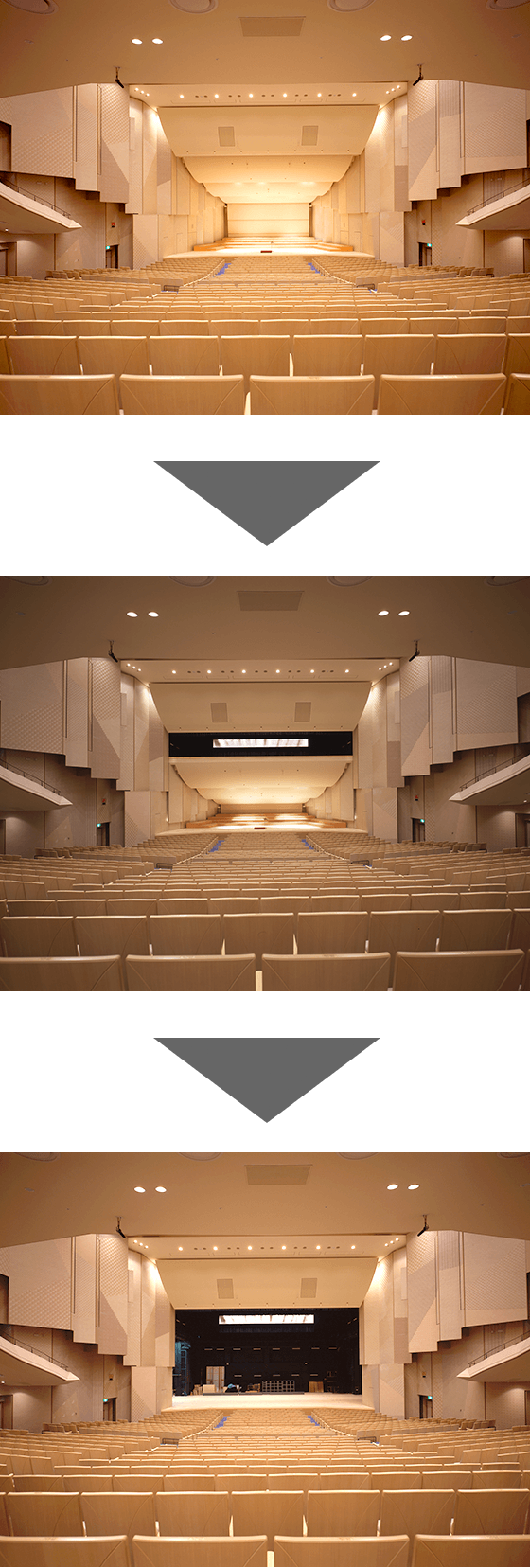

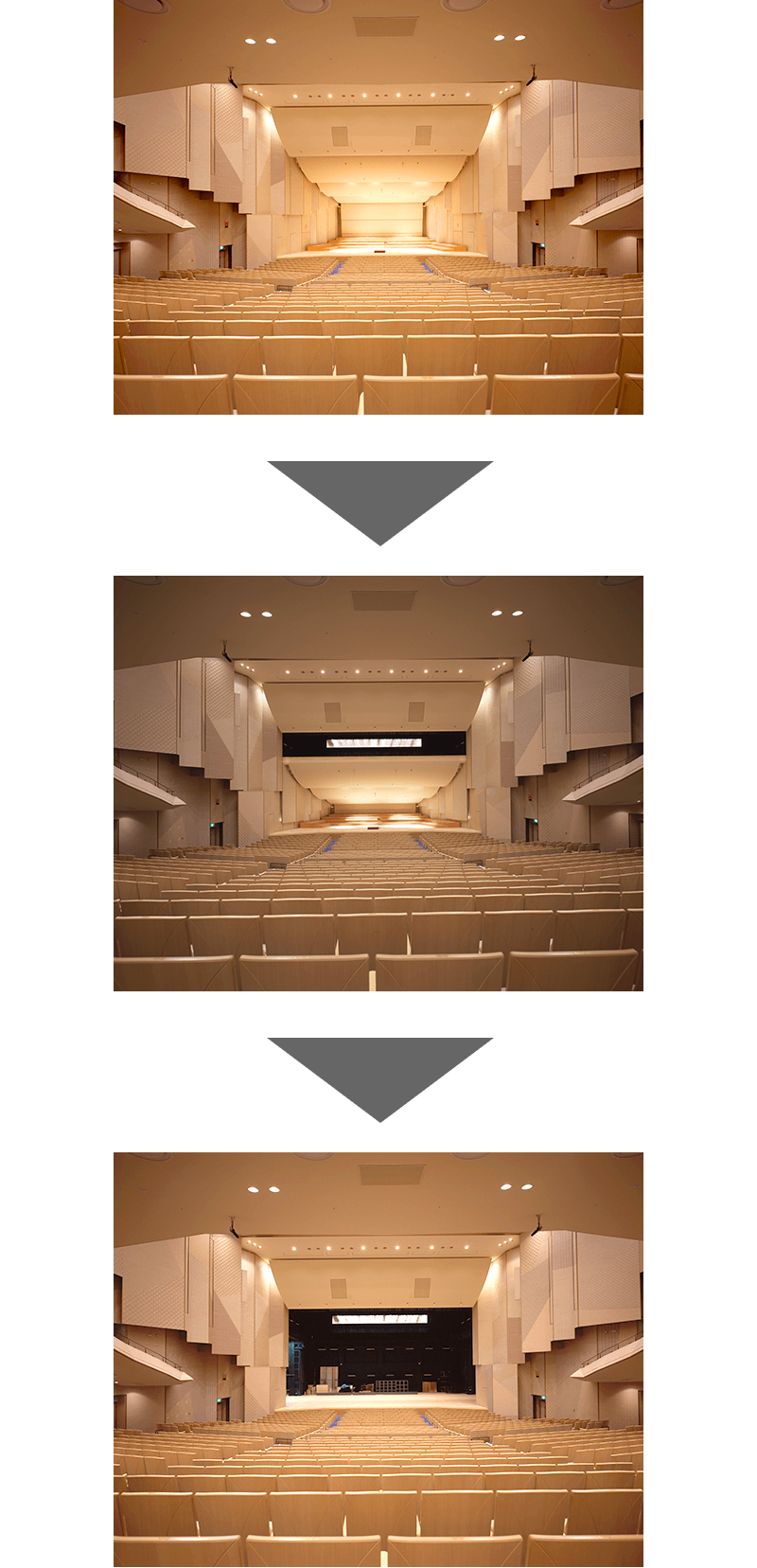

Photograph of the movable acoustic shell in the Kiryu City Performing Arts Center, SILK HALL
Photograph of the movable acoustic shell in the Kiryu City Performing Arts Center, SILK HALL

Slide horizontally to see the table.

Dimension Area Operating load Static load Speed Scroll Operating time
Lower stage floor 23m × 11.5m Approx. 264.5m2 50kg/m2 300kg/m2 Approx. 1m/min 8m Approx. 8 minutes
Upper stage flower 23m × 11.5m Approx. 264.5m2 0kg/m2 360kg/m2 Approx. 0.6m/min 3.5m Approx. 6 minutes
When the acoustic shelter is stored (when the upper stage floor is used as a stage)
