[ Engine ]

Distributors :

Type 4-Cycle water-cooled diesel engine
Aspiration Natural-Aspriated
Number of Cylinder 3
Bore and Stroke (mm) 78×92
Displacement (cc) 1318
Combustion System Swirl chamber
Maximum gross output (kW/rpm) 21.2/3600
Fuel/Fuel System Diesel fuel(ASTM No.2-D)/in-line type(PFR)
Charging alternator (V-A) 12-40
Starting system 12-1.7
Engine oil capacity (L) 4.2
Dry weight (kg) 135
Flywheel SAE#7.5
Flywheel Housing SAE #5

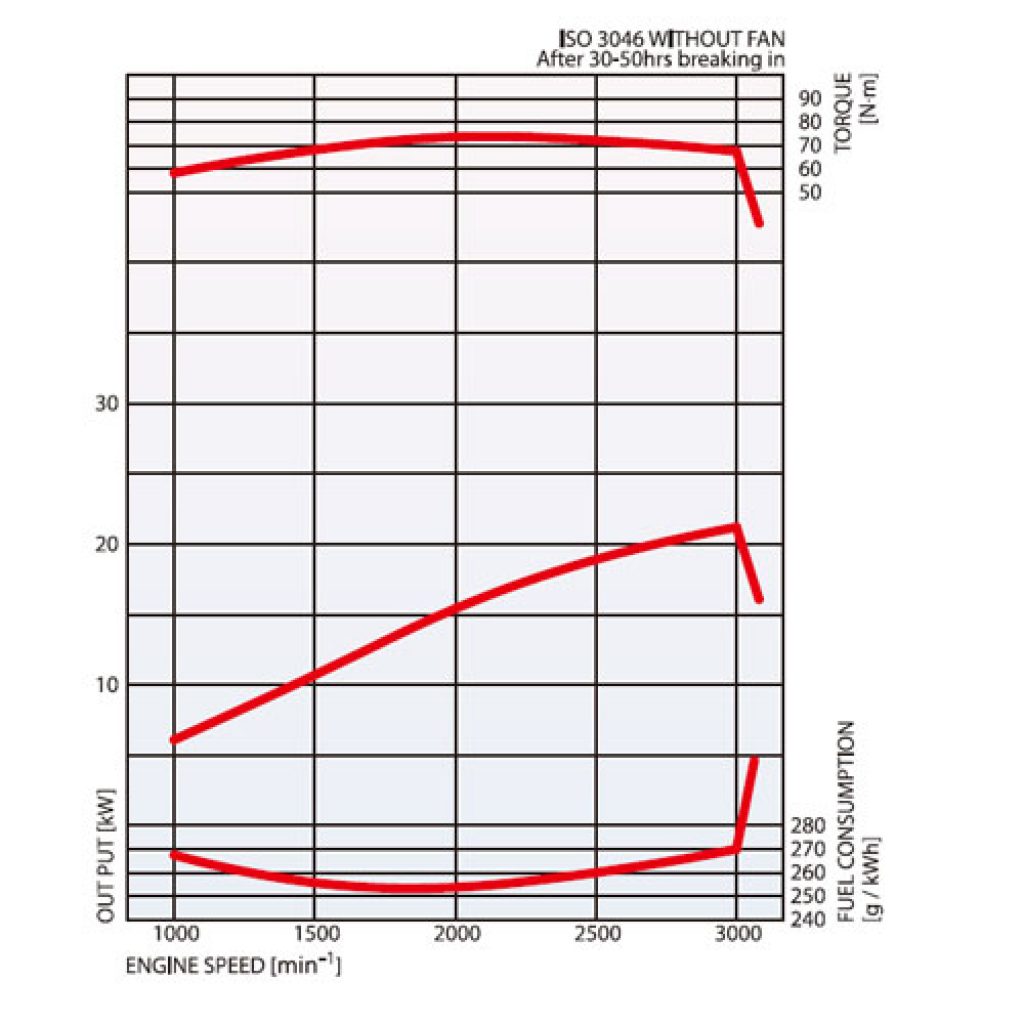

Performance Curve

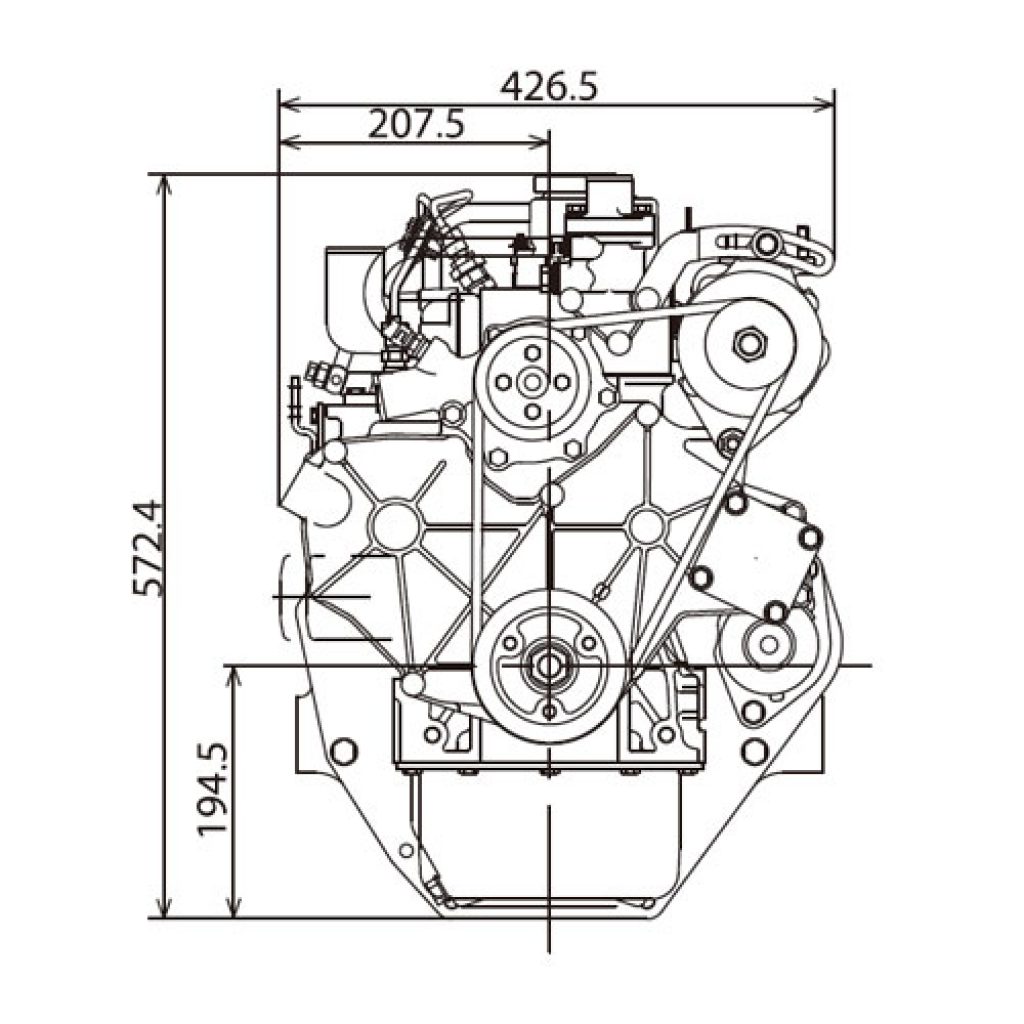

Dimensions (Unit: mm)
