FRC SERIES
FRC SERIES
SHARE
Distributors :
FRC Series are powerful and highly reliable. It has very low fuel consumption comparing to
those of the same class. They have the same configuration as FD and SK series. FRC engines are made by our accumulated advanced technologies optimized for your application.
| D04FRC | D06FRC | ||
|---|---|---|---|
| Type | 4-cycle water-cooled diesel engine | ||
| Aspiration | Turbocharged | ||
| Number of cylinders | 4 | 6 | |
| Bore and stroke | mm | 102x130 | |
| Displacement | cc | 4249 | 6373 |
| Combustion system | Direct injection | ||
| Maximum gross output | kW/min-1 | 74 / 2000, 91 / 2150, 98 / 2200 | 129 / 2100, 138 / 2100, 150 / 2100 |
| Fuel /Fuel system | Diesel fuel (ASTM No.2-D) / Common rail system | ||
| Charging alternator | V-A | 24-50 | |
| Starting system | V-kW | 24 - 5.0 | |
| Engine oil capacity | liter | 17.5 | 29.0 |
| Dry weight(1500/1800 min-1.spec) | kg | 420 | 560 |
| Flywheel | MHI Standard | ||
| Flywheel Housing | SAE #3 | ||

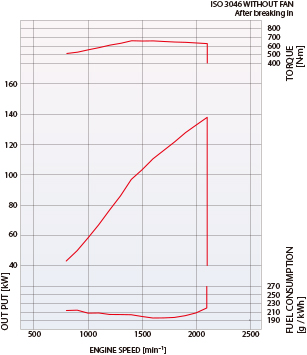

| Performance Curve | Dimensions(Unit:mm) | |
|---|---|---|
|

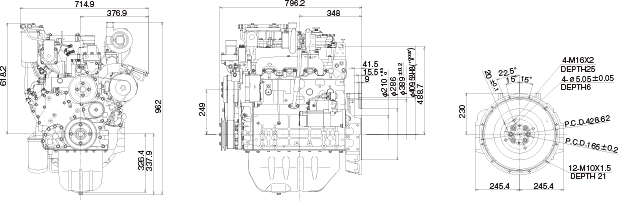

D04FRC |
 |
 |
|

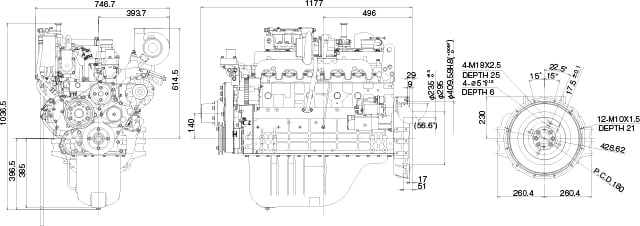

D06FRC |
 |
 |
