Vibration Control Systems:Example of Delivery
Vibration Control Systems:Example of Delivery
Main examples in Japan
The Landmark Tower (Yokohama)
![Photo of Landmark Tower vibration control system (Yokohama)](/products/infrastructure/images/steelstructures_vibrationcontrol_case07.png)
Equipment specifications | System: HMD (Two-way active, triple pendulum) Number of installed machines: Two units Vibrating body weight: 170tons/unit |
---|---|
Year and month of delivery | June, 1993 |

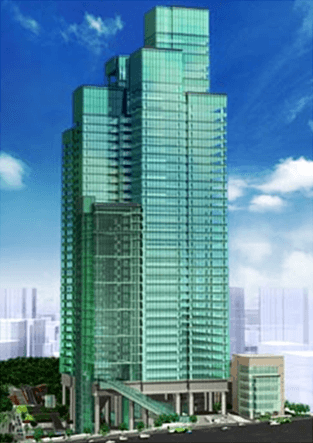

IZUMI GARDEN (Roppongi)
![Photo of Izumi Garden (Roppongi 1-chome)](/products/infrastructure/images/steelstructures_vibrationcontrol_case06.png)
Equipment specifications | System: HMD (Two-way active, Two-stage rail) Number of installed machines: Two units Vibrating body weight: 60tons/unit |
---|---|
Year and month of delivery | June, 2002 |

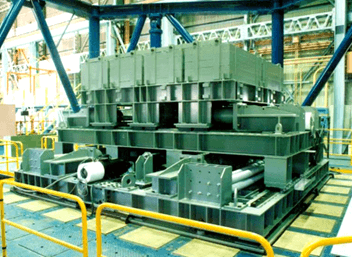

![Photo of IZUMI GARDEN vibration control system (Roppongi 1-chome)](/products/infrastructure/images/steelstructures_vibrationcontrol_case06_01.png)

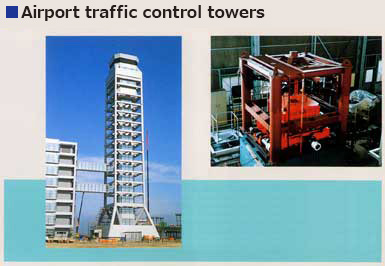

Kansai International Airport Traffic Control Towers
![Photo of Kansai International Airport Traffic Control Towers](/products/infrastructure/images/steelstructures_vibrationcontrol_case05.jpeg)
Equipment specifications | System: HMD (Two-way active, Simple pendulum) Number of installed machines: Two units Vibrating body weight: 5tons/unit |
---|---|
Year and month of delivery | Oct, 1992 |

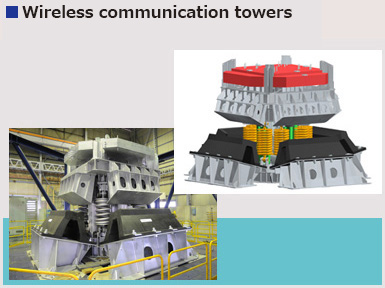

Wireless Communication Tower (Radio Wave Reception and Transmittal Towers)
![Photo of Tokyo Skay Tree Wireless Communication Tower (Radio Wave Reception and Transmittal Towers)](/products/infrastructure/images/steelstructures_vibrationcontrol_case04.jpeg)
Equipment specifications | System: TMD(Inverted pendulum type) Number of installed machines: Two units Vibrating body weight: 40tons/unit (620m), 25tons/unit (625m) |
---|---|
Year and month of delivery | Feb, 2012 |
Purpose of installation
To control the shaking of an antenna gain tower caused by strong wind (to maintain the radio tower function)

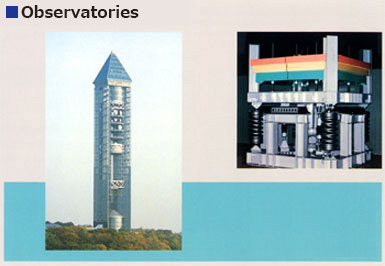

Higashiyama Sky Tower, Nagoya
![Photo of Higashiyama Sky Tower, Nagoya](/products/infrastructure/images/steelstructures_vibrationcontrol_case03.jpeg)
Equipment specifications | System: TMD (Inverted pendulum type) Number of installed machines: One unit Vibrating body weight: 20ton |
---|---|
Year and month of delivery | Nov, 1988 |
Main examples in overseas
Pingan International Finance Center (China)
![Photo of Pingan International Finance Center (China)](/products/infrastructure/images/steelstructures_vibrationcontrol_case02.jpeg)
Equipment specifications | System: HMD (Two-way active, triple pendulum) Number of installed machines: Two units Vibrating body weight: 300tons/unit |
---|---|
Year and month of delivery | Jan, 2017 |

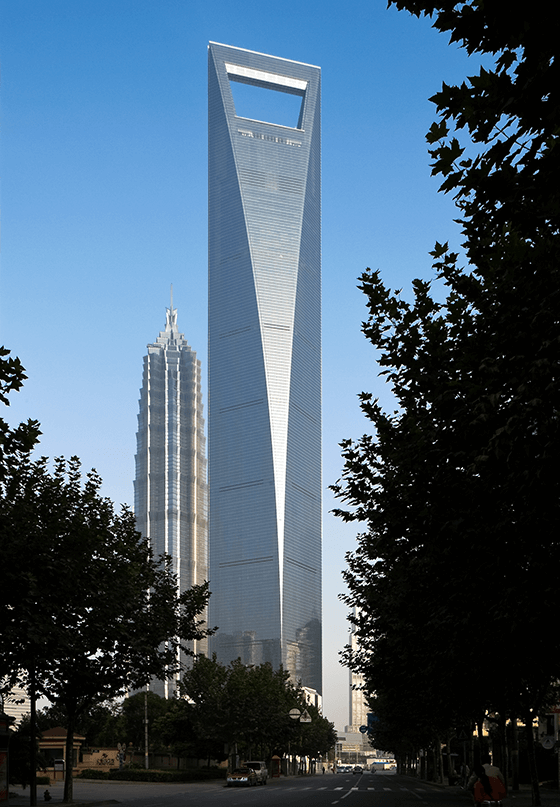

Shanghai World Financial Center (China)
![Photo of Shanghai World Financial Center (China)](/products/infrastructure/images/steelstructures_vibrationcontrol_case01.png)
Equipment specifications | System: HMD (Two-way active, triple pendulum) Number of installed machines: Two units Vibrating body weight: 150tons/Unit |
---|---|
Year and month of delivery | Apr, 2008 |

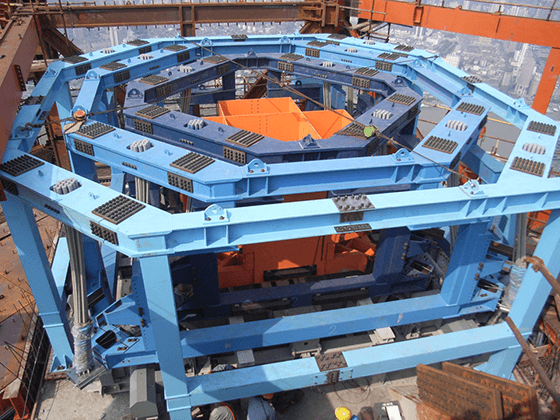

![Photo of the Vibration Control System of Shanghai World Financial Center (China)](/products/infrastructure/images/steelstructures_vibrationcontrol_case01_01.png)
