Type Indication
RMC-210A-R-11
Slide horizontally to see the table.
| Type | Fixed/variable | Volume of sweep (cm3/rev/1/10) |
Series code | Rotation method | Shaft forms |
|---|---|---|---|---|---|
| RM | C | -210 | A | -R | -11 |
| (RM) Radial piston type motor | (C) Fixed capacity type | (210) 2099 (350) 3507 |
(A) A series | From the edge of the axial (Oil supply from A port) (L) (R) Left rotation(Standard) Right rotation |
(11) Straight shaft (21) Taper shaft |
Specification
Slide horizontally to see the table.
| Model | Displacement (cm3/rev) |
Pressure (MPa) |
Speed (min-1) |
Rated torque (kN/m) |
Rated output (kW) |
Mass (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|
| Rated | Maximum momentary | Rated | Maximum continuous (13.7MPa) |
Rated | Max. | ||||
| RMC-210A | 2,099 | 20.6 | 24.5 | 180 | 260 | 6.42 | 7.65 | 120 | 280 |
Performance Curve |
|||||||||

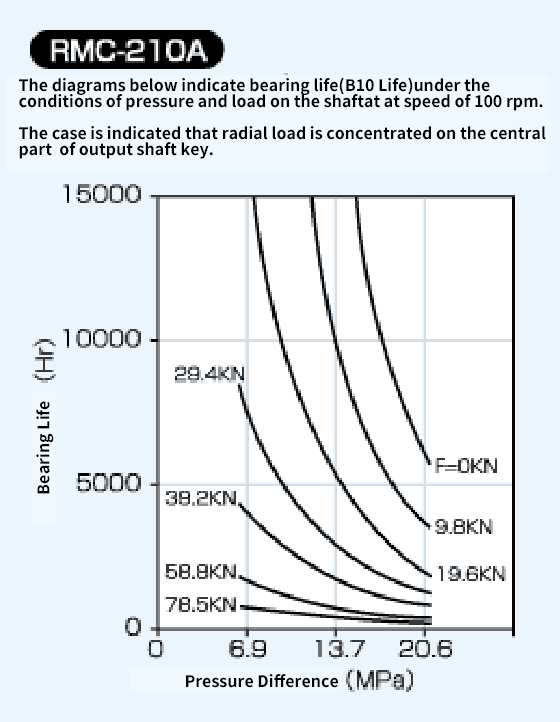

Bearing Life |
|||||||||
| RMC-350A | 3,507 | 20.6 | 24.5 | 135 | 195 | 10.59 | 12.65 | 150 | 440 |

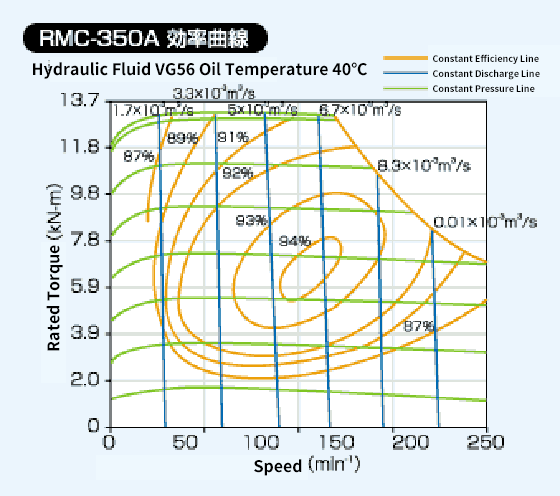

Performance Curve |
|||||||||

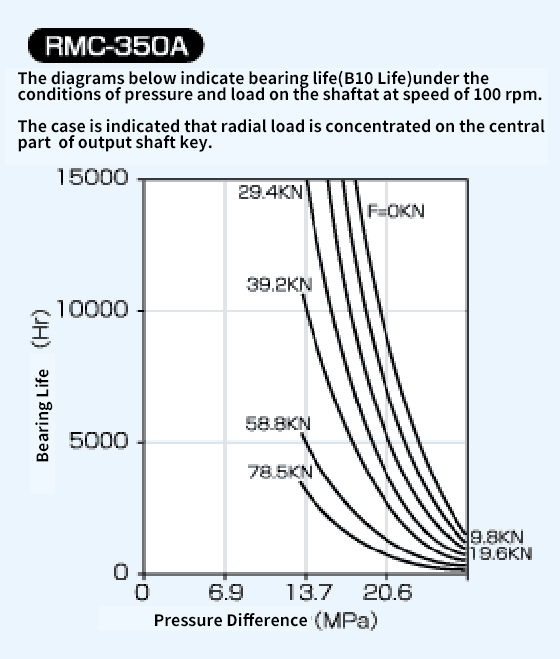

Bearing Life |
|||||||||
