MVS4L2

4 cylinder diesel engine
Type 4-Cycle water-cooled diesel engine
Aspiration Natural-Aspriated
Number of Cylinder 4
Bore and Stroke (mm) 78×92
Displacement (cc) 1758
Combustion System Swirl chamber
Maximum gross output (kW/rpm) 28.8/3000
Fuel/Fuel System Diesel fuel(ASTM No.2-D)/in-line type(PFR)
Charging alternator (V-A) 12-50
Starting system (V-kW) 12-2.0
Engine oil capacity (ℓ) 6
Dry weight (kg) 155
Flywheel SAE#7.5
Flywheel Housing SAE #5

Performance Curve

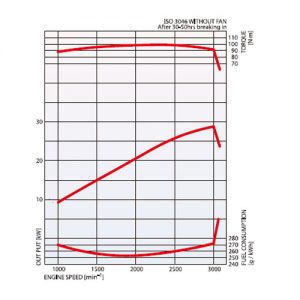

S4L2-T Diesel Engine performance curve graph
Dimensions (Unit: mm)

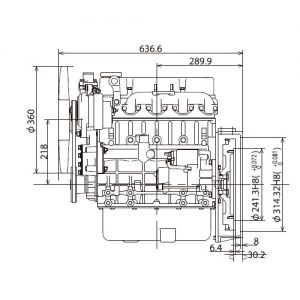

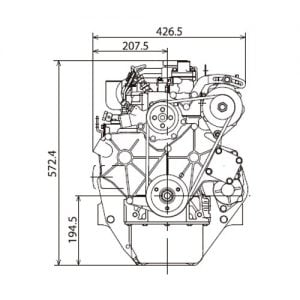

Drawing explaining dimensions of S4L2-T Diesel Engine
Interior parts drawing of Diesel Engine S4L2-T

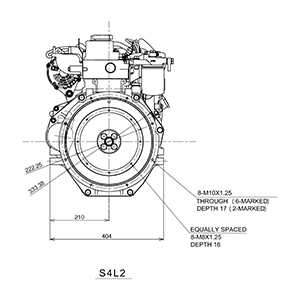

Rear view of MVS4L2 Diesel Engine, Diesel engine dimensions displayed on a line drawing
