MVS4L2-T

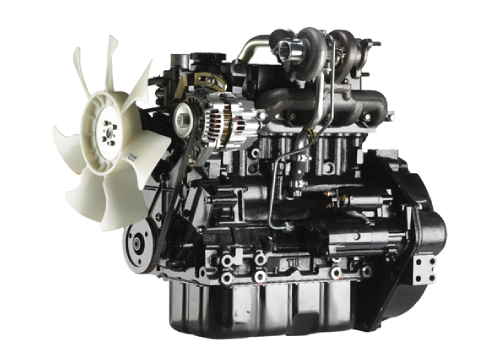

MVS4L2-T Mitsubishi Diesel Engine
Type 4-Cycle Water-Cooled Diesel Engine
Aspiration Turbocharged
Number of Cylinder 4
Bore and Stroke (mm) 78x92
Displacement (cc) 1758
Combustion system Swirl Chamber
Maximum Gross Output (kW/rpm) 36.8/3000
Fuel/Fuel system Diesel Fuel (ASTM No.2-D) / Inline -type(PFR)
Charging alternator (V-A) 12-50
Starting System (V-kW) 12-2.0
Engine Oil Capacity (ℓ ) 6.0
Dry Weight (kg) 174
Flywheel SAE #7.5
Flywheel Housing SAE #5

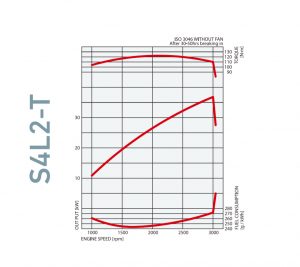

Performance Curve
Performance curve graph of MVS4L2 diesel engine
Dimensions (Unit: mm)

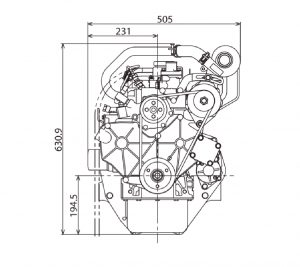

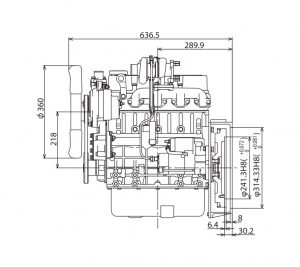

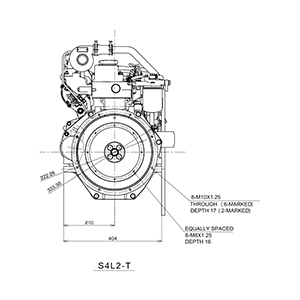

MVS4L2 diesel engine dimension drawing
4-Cycle water-cooled diesel engine sketch
Mitsubishi SL series diesel engine sketch
