Type 4-Cycle water-cooled diesel engine
Aspiration Natural-Aspriated
Number of Cylinder 3
Bore and Stroke (mm) 78×92
Displacement (cc) 1318
Combustion System Swirl chamber
Maximum gross output (kW/rpm) 21.2/3000
Fuel/Fuel System Diesel fuel(ASTM No.2-D)/in-line type(PFR)
Charging alternator (V-A) 12-50
Starting system (V-kW) 12-1.7
Engine oil capacity (ℓ) 4.2
Dry weight (kg) 135
Flywheel SAE#7.5
Flywheel Housing SAE #5

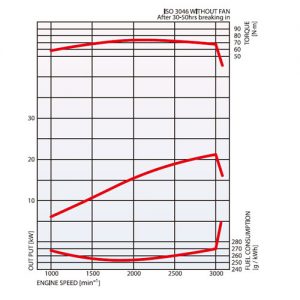

Performance Curve
Dimensions (Unit: mm)

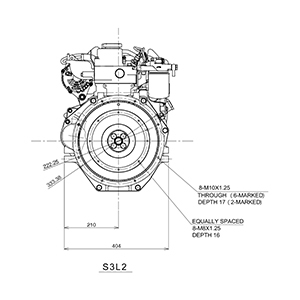

Rear view of MVS3L2 Diesel Engine, Diesel engine dimensions displayed on a line drawing
