MVL2E

l2e-2
Type 4-Cycle water-cooled diesel engine
Aspiration Natural-Aspriated
Number of Cylinder 2
Bore and Stroke (mm) 76×70
Displacement (cc) 635
Combustion System Swirl chamber
Maximum gross output (kW/rpm) 11.3/3600
Fuel/Fuel System Diesel fuel(ASTM No.2-D)/in-line type(PFR)
Charging alternator (V-A) 12-40
Starting system 12-1.2
Engine oil capacity (L) 2.5
Dry weight (kg) 71
Flywheel SAE#6.5
Flywheel Housing SAE #5

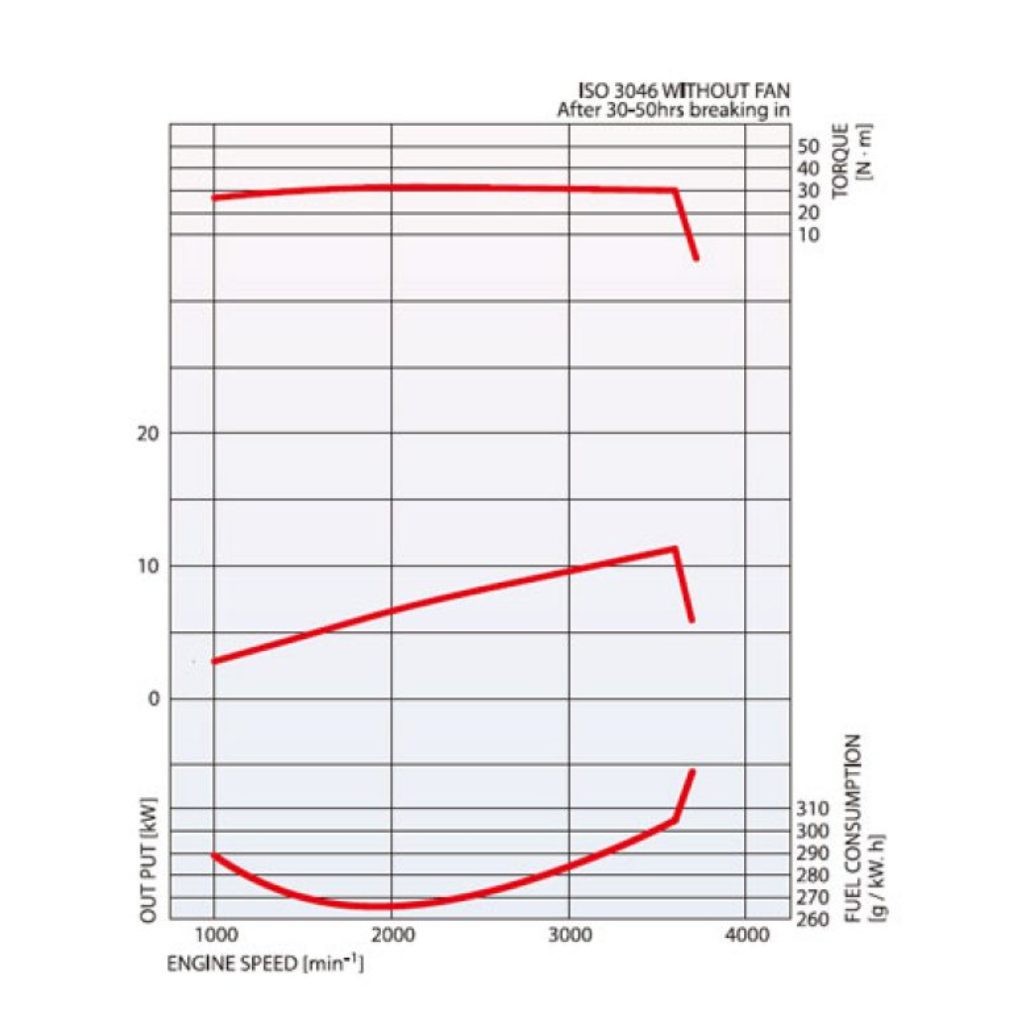

Performance Curve

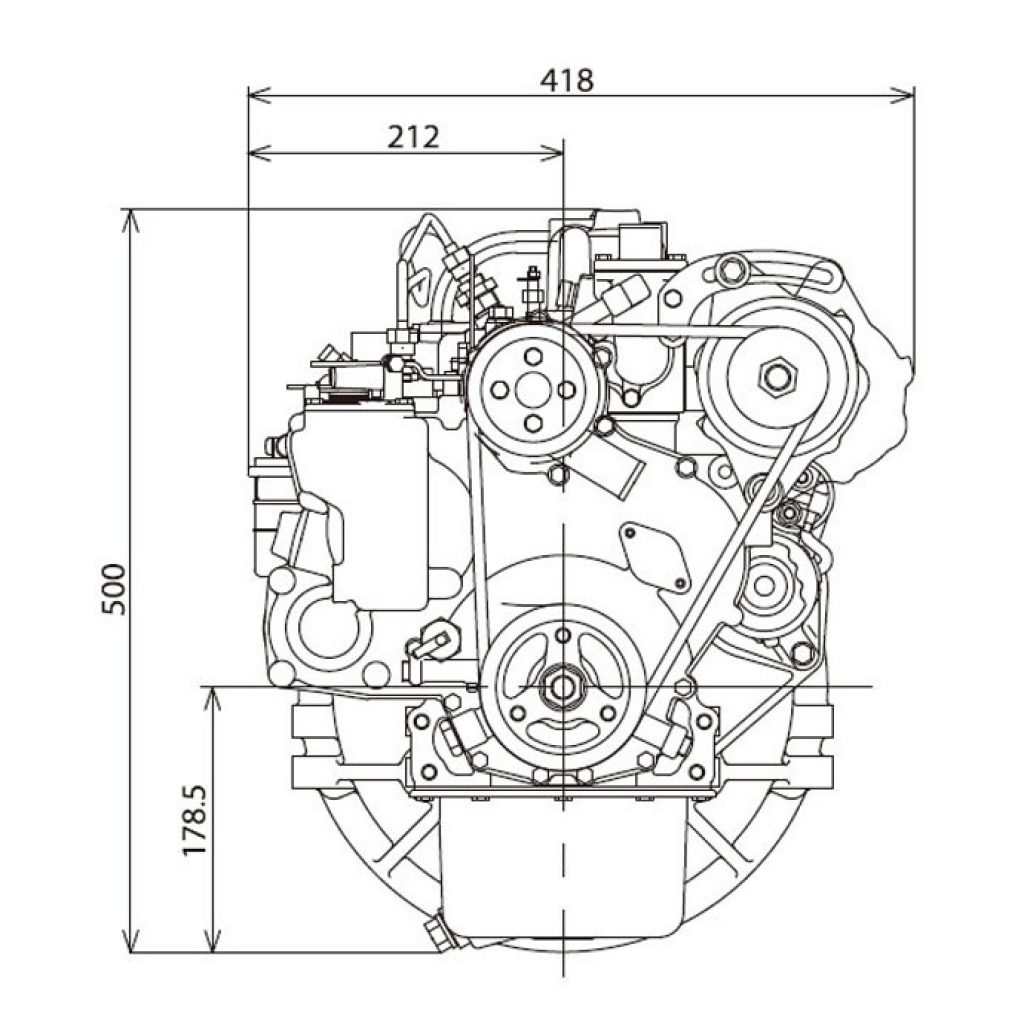

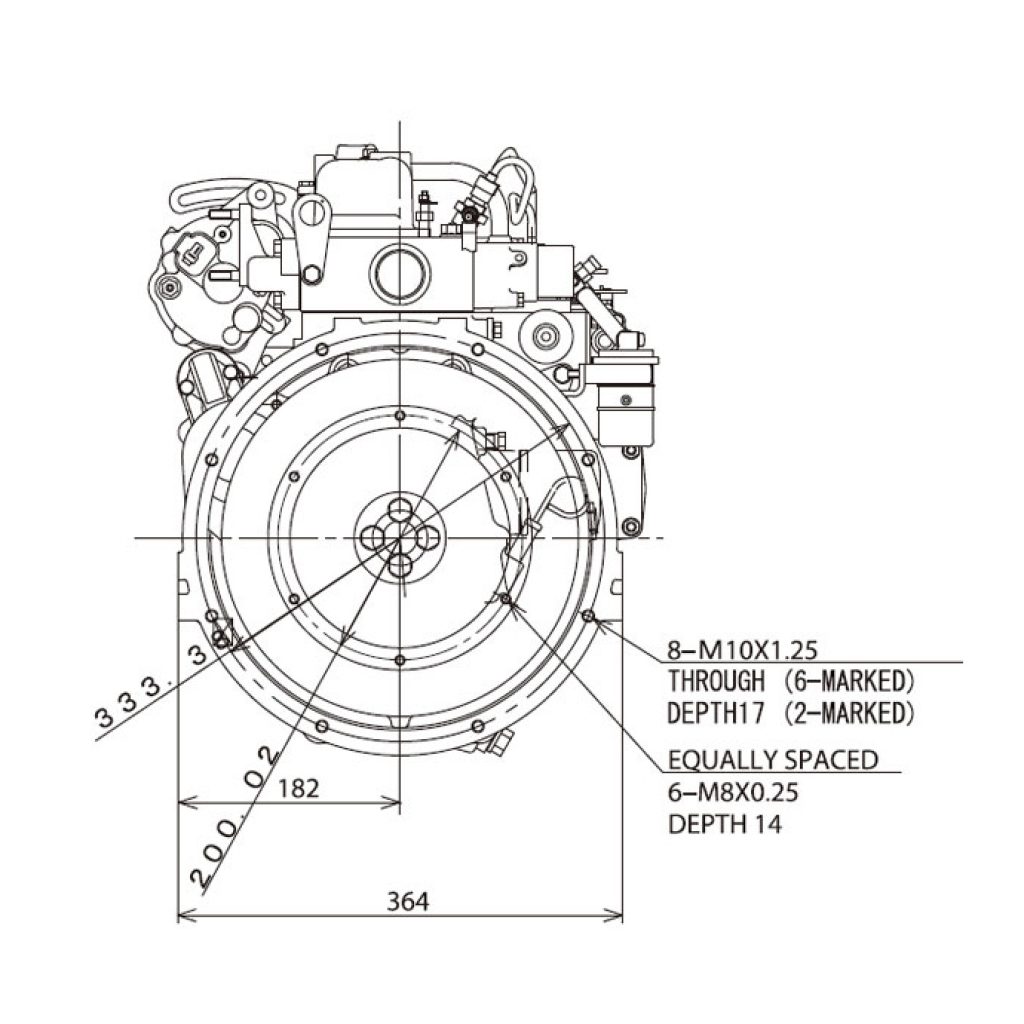

Dimensions (Unit: mm)
