Lineup for V-type Engines

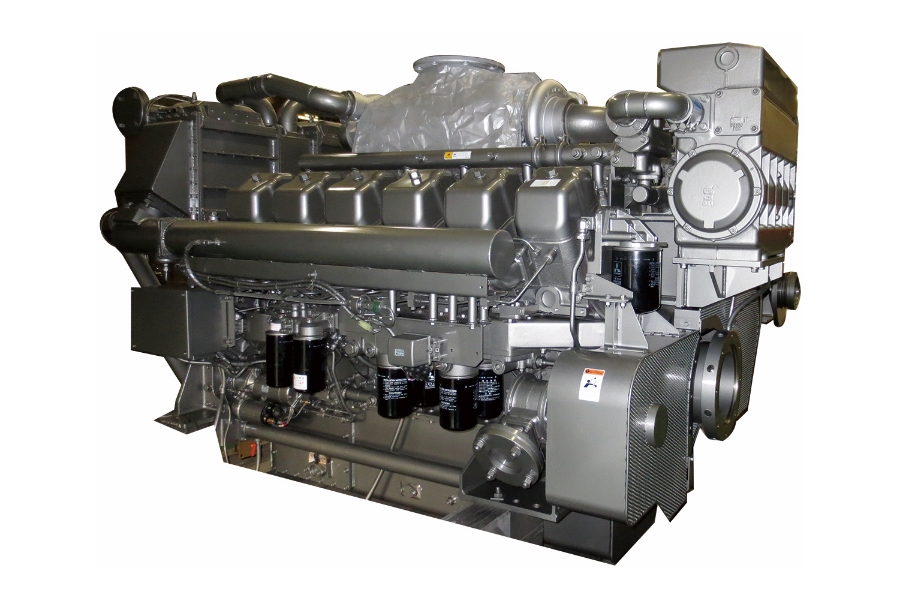

S12A2 Series

Model Unit S12A2-MPTK S12A2-T2MPTK
Max. output LD 858kW / 1150HP / 2100rpm 858kW / 1150HP / 1920rpm
MD 776kW / 1040HP / 2000rpm 776kW / 1040HP / 1860rpm
HD 701kW / 940HP / 1940rpm 701kW / 940HP / 1800rpm
EIAPP IMO1 IMO2
No. of cylinder 12 12
Bore x Stroke mm 150 x 160 150 x 160
Displacement litre 33.93 33.93
Flywheel SAE 18 inch 18 inch
Flywheel housing SAE No.0 No.0
Length mm 2438.5 2438.5
Width mm 1482 1482
Height mm 1595.5 1595.5
Dry weight kg 3890 3890

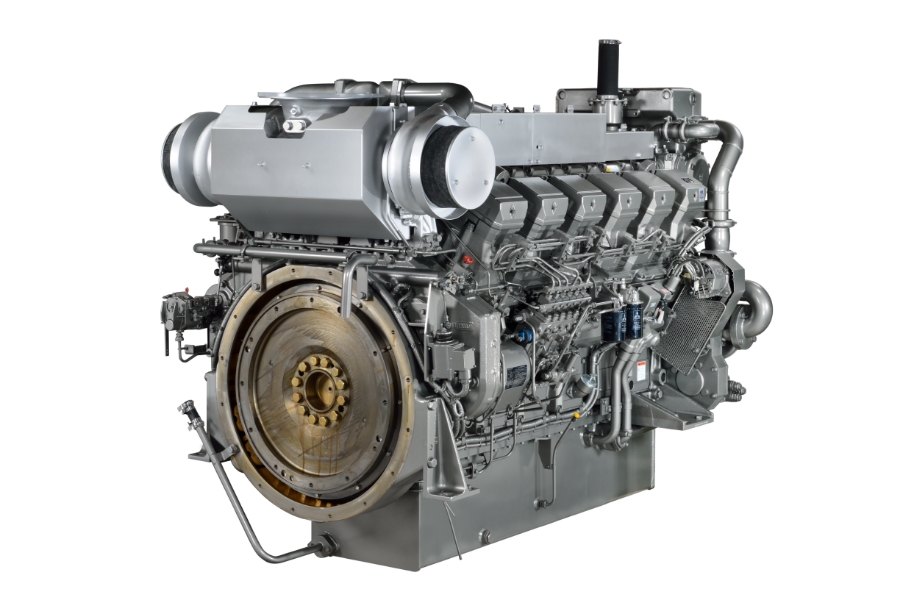

S12R Series

Model Unit S12R-(T2)MPTK S12R-T2MPTK2
Max. output LD 1210kW / 1622HP / 1800rpm 1342kW / 1800HP / 1800rpm
MD 1040kW / 1394HP / 1650rpm 1202kW / 1612HP / 1650rpm
HD 940kW / 1260HP / 1600rpm
EIAPP IMO1 / IMO2 IMO2
No. of cylinder 12 12
Bore x Stroke mm 170 x 180 170 x 180
Displacement litre 49.03 49.03
Flywheel SAE 21 inch 21 inch
Flywheel housing SAE No.00 No.00
Length mm 2556.5 2556.5
Width mm 1622 1622
Height mm 1727.5 1727.5
Dry weight kg 5500 5500

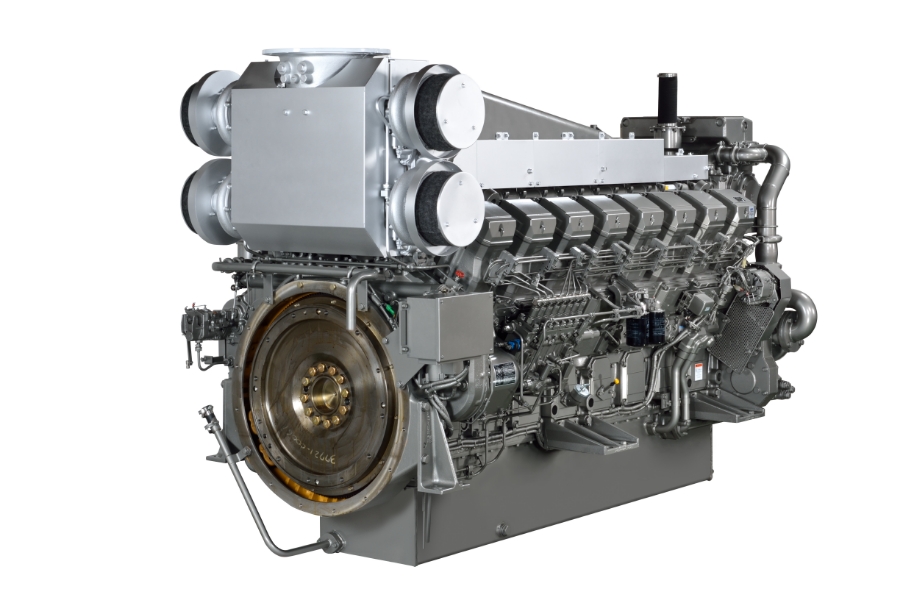

S16R Series

Model Unit S16R-(T2)MPTK
Max. output LD 1610kW / 2158HP / 1800rpm
MD 1380kW / 1850HP / 1650rpm
HD 1250kW / 1676HP / 1600rpm
EIAPP IMO1 / IMO2
No. of cylinder 16
Bore x Stroke mm 170 x 180
Displacement litre 65.37
Flywheel SAE 21 inch
Flywheel housing SAE No.00
Length mm 3086
Width mm 1622
Height mm 1960
Dry weight kg 7000

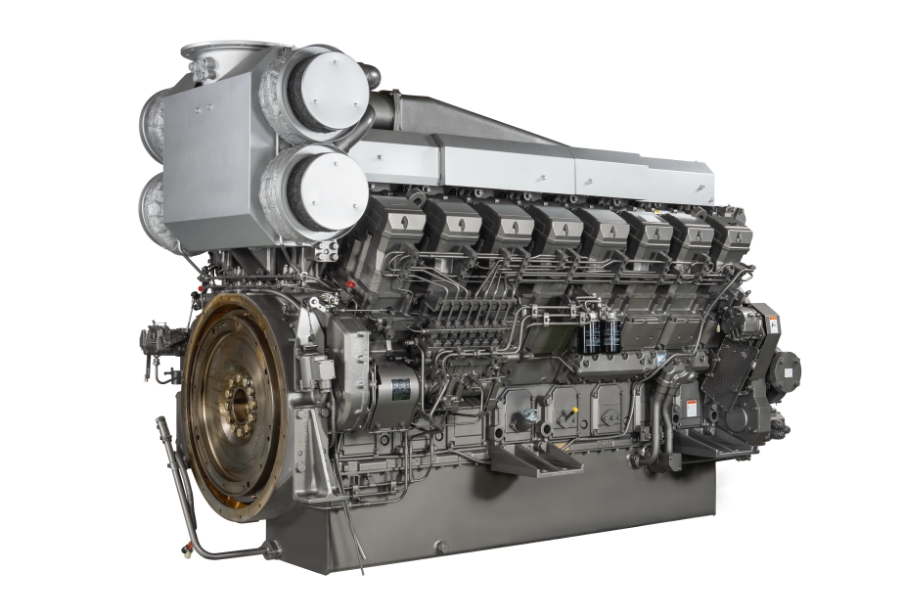

S16R2 Series

Model Unit S16R2-T2MPTK
Max. output LD 1885kW / 2526HP / 1500rpm
MD 1600kW / 2144HP / 1500rpm
HD 1450kW / 1943HP / 1350rpm
EIAPP IMO2
No. of cylinder 16
Bore x Stroke mm 170 x 220
Displacement litre 79.90
Flywheel SAE 21 inch
Flywheel housing SAE No.00
Length mm 2946
Width mm 1525
Height mm 2029
Dry weight kg 7910
