Mitsubishi RMM Motor:Model/Specificaition/Dimensions
Mitsubishi RMM Motor:Model/Specificaition/Dimensions
Type Indication
RMM-350/105Q-L-22V
Slide horizontally to see the table.
Model | Variable-speed motor | Low/high speed Displacement |
Series code | Rotation direction | Shaft | Ancillary device |
---|---|---|---|---|---|---|
RM | M | 305/105 | A | -L | -22 | V |
(cm3/rev×1/10) | Viewed from shaft end (L) counterclockwise (normal) (R) Clockwise |
(22) Special taper shaft | (V) With automatic 2-speed switchover valve |
Specification
Slide horizontally to see the table.
Model | Low/high speed | Displacement (cm3/rev) |
Pressure (MPa) |
Speed (min-1) |
Rated torque (kN/m) |
Rated Output (kW) |
Mass (kg) |
||
---|---|---|---|---|---|---|---|---|---|
Rated | Max | Rated | Max (13.7MPa) |
||||||
RMM-210 | Low speed | 2,099 | 20.6 | 24.5 | 180 | 260 | 6.4 | 120 | 310 |
High speed | 629 | 330 | 330 | 1.7 | - | ||||
RMM-350 | Low speed | 3,507 | 20.6 | 24.5 | 135 | 195 | 10.6 | 150 | 475 |
High speed | 1,052 | 280 | 280 | 2.8 | - |
With automatic 2-speed switchover valve
Slide horizontally to see the table.
Maximum allowable working pressure (MPa) | Cut-in pressure (MPa) | Cut-out pressure (MPa) | Mass (kg) |
---|---|---|---|
24.5 | 10.8 to 19.1 | 2.0 to 3.4 | 28.5 |

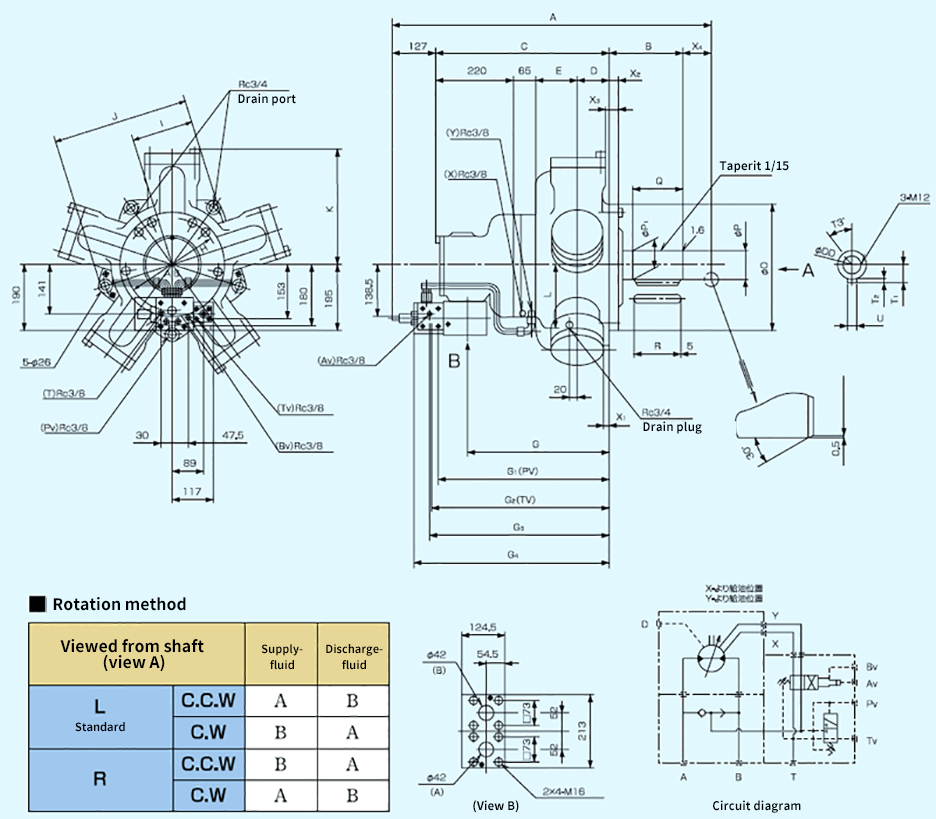

Dimensions
Drainless types are also available. Please feel free to inquire.
Unit: millimeter
Slide horizontally to see the table.
Model | A | B | C | D | E | G | G1 | G2 | G3 |
---|---|---|---|---|---|---|---|---|---|
RMM-210 | 908 | 205 | 496 | 91 | 120 | 405 | 491 | 510 | 515 |
RMM-350 | 1,026.5 | 266 | 544.5 | 110 | 149.5 | 453.5 | 539.5 | 558.5 | 563.5 |
Slide horizontally to see the table.
G4 | φH | I | J | K | L | φO | φP | φP1 | Q | R |
---|---|---|---|---|---|---|---|---|---|---|
560 | 400 | 184 | 406 | 327 | 173.5 | 350h6 | 75m6 | 90 | 146 | 136 |
608.5 | 460 | 220 | 475 | 384 | 200 | 405h6 | 90m6 | 110 | 185 | 170 |
Slide horizontally to see the table.
T1 | T2 | T3 | U | X1 | X2 | X3 | X4 | φDD |
---|---|---|---|---|---|---|---|---|
49 | 16 | 35 | 24m6 | 30 | 25 | 13 | 80 | 50 |
59 | 18 | 30 | 28m6 | 40 | 35 | 15 | 89 | 64 |
